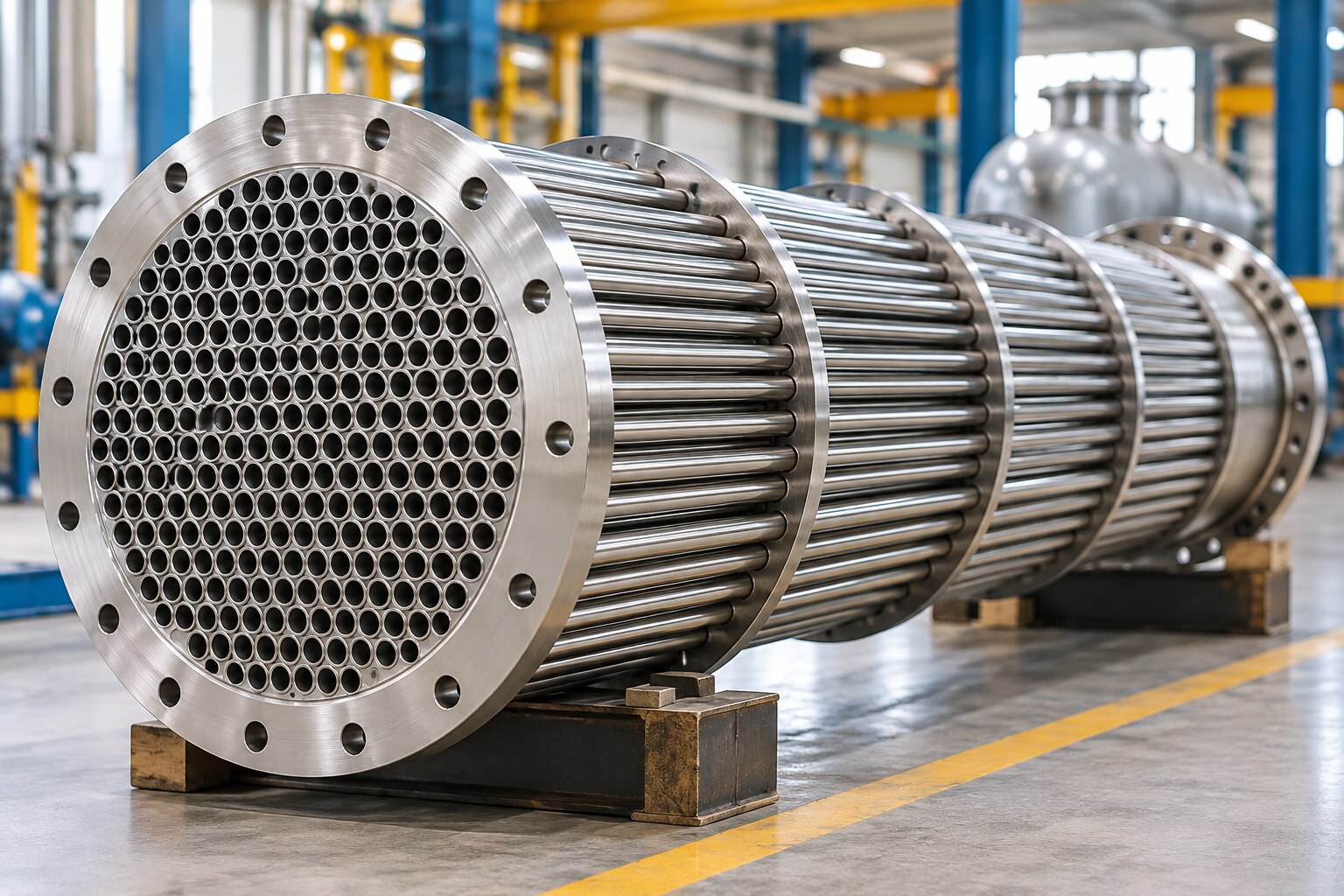

A stainless steel tube bundle can fail even when its bulk alloy appears compatible with the process fluid. By defining the actual corrosion mechanisms, comparing materials against temperature and chemistry, and specifying the bundle’s geometry, fabrication and inspection requirements, you can select equipment that remains serviceable instead of merely surviving the first pressure test.
Key takeaways
- Identify chloride, pH, sulfides, temperature and deposits before choosing an alloy.
- Select tubing after checking corrosion resistance, fabrication condition and stress exposure.
- Size the bundle from heat duty, velocity, pressure drop and cleaning requirements.
- Specify inspection, documentation, replaceability and service-life requirements before purchase.
Map the fluid chemistry to the actual corrosion mechanism
A stainless steel tube bundle can corrode, crack or erode when temperature, chemistry, velocity and stress combine unfavourably. Record chloride concentration, pH, acids, caustic solutions, dissolved oxygen, sulfides and hydrogen sulfide (H2S), plus pressure, temperature cycles and flow velocity. A clean fluid at the inlet can become aggressive beneath deposits.
- Treat fouling as part of the chemistry. Deposits concentrate chlorides, create differential aeration, reduce heat transfer and raise the local tube-wall temperature. Specify a realistic fouling basis, cleanable geometry and access for mechanical or chemical cleaning; verify that cleaning chemicals suit every wetted alloy.
- Check tube sheets, baffles, pass-partition plates, tie rods, expansion joints, welds and gasket-retaining crevices. An unprotected carbon-steel crevice can become the failure site even when the tubes are resistant.
- If H2S or sour-service rules apply, check ISO 15156/NACE MR0175, hardness, weld qualification and environmental limits. Chloride-pitting resistance does not prove resistance to sulfide stress cracking or hydrogen-assisted cracking.
| Mechanism | Conditions that trigger it | Typical damage |
|---|---|---|
| General or localized corrosion | Acids, caustic solutions, chlorides, oxygen, low pH or stagnant crevices | Wall thinning, pits and leaks |
| Chloride stress-corrosion cracking | Hot chlorides plus tensile residual or operating stress | Branching cracks with little metal loss |
| Erosion-corrosion | High velocity, turbulence, flashing or suspended solids | Grooves and rapid thinning at inlets and supports |
| Sulfide cracking or MIC | H2S, sulfides, wet deposits or microbial activity | Cracks, pitting and under-deposit attack |
Choose the alloy from temperature, chemistry and fabrication condition
Do not select 316L from a chloride number alone. Chloride activity, temperature, oxygen, pH, deposits, evaporation and tube-sheet crevices determine pitting and crevice corrosion; hot chloride service also creates stress-corrosion cracking without much wall loss. Use PREN = %Cr + 3.3(%Mo) + 16(%N) to screen grades, not to approve them.
Weld condition, phase balance, residual stress and cleaning chemicals still decide performance.
| Option | Defensible choice | Conditions and cautions |
|---|---|---|
| 304L | Clean, low-chloride water or mildly corrosive fluids | Use where deposits, hot spots and crevices are controlled; it offers little chloride margin. |
| 316L | Moderate chloride service with clean, flowing conditions | Confirm temperature and deposits by corrosion review; it is unsafe as a universal chloride-grade default. |
| Duplex stainless steel | Higher chloride resistance and strength than austenitic grades | Control weld heat input and ferrite-austenite balance; inspect welds and heat-affected zones. |
| 904L stainless steel | Hotter, acidic, chloride-bearing service needing greater alloy margin | Qualify fabrication and welding; its PREN is a screening advantage, not immunity. |
| Nickel alloy | Severe acids, caustics, sulfides or chloride cracking risk | Select for the exact chemistry and temperature; cost does not replace compatibility testing. |
| Titanium | Oxidizing chloride brine and seawater service | Check reducing acids, crevices, hydrogen effects and galvanic couples. |
| Non-metallic tube | Aggressive chemistry where temperature, pressure and permeation permit | Verify creep, erosion, vacuum collapse, chemical cleaning and tube-sheet sealing. |
Fouling can concentrate chlorides and raise tube-wall temperature, so specify cleanable geometry and an inspection baseline. For hot chloride stress, reduce stagnant wet-dry zones and residual stress; increasing wall thickness alone is not a reliable fix.
Set the thermal, hydraulic and cleaning design basis before sizing
Size the bundle from a complete operating envelope, not a nominal duty. Provide the fluid-side temperature, utility-side temperature, design pressure and vacuum cases for both sides, heat duty, allowable pressure drop, fluid composition, solids loading and expected operating hours.
| Basis | Data to provide | Why it controls sizing |
|---|---|---|
| Thermal | Normal and upset inlet and outlet temperatures, utility temperature range, heat duty, thermal cycling | Prevents cold spots, excessive wall temperature and thermal-expansion damage |
| Hydraulic | Flow rate and velocity limits, minimum turndown, maximum flow, solids concentration and allowable pressure drop | Balances deposit formation against erosion-corrosion at inlets, bends and pass changes |
| Cleaning | Fouling resistance for each side, deposit type and thickness, cleaning chemicals, temperature, frequency and access limits | Determines whether the geometry remains cleanable throughout the service interval |
State normal, minimum, maximum and upset flow separately. Very low velocity allows solids to settle and creates under-deposit corrosion; excessive velocity, entrained particles or flashing can strip the passive film.
Include these design cases:
- Startup, shutdown, turndown and loss-of-utility conditions
- Tube-side and shell-side fouling allowances
- Chemical-cleaning concentration, temperature and contact time
- Mechanical-cleaning access, removable bundle requirements and tube-plugging allowance
Use TEMA construction requirements and ASME BPVC Section VIII for the mechanical basis. Confirm that cleaning chemicals suit the selected alloy; a deposit that concentrates chlorides can turn an acceptable stainless surface into a pitting or crevice-corrosion site.
Compare tube construction and bundle geometry against failure consequences
Choose construction and geometry by asking what a leak will damage, not by chasing the thinnest or most compact bundle. A tube rupture that contaminates a product, releases toxic fluid or forces a plant shutdown deserves easier inspection and faster isolation than one with a tolerable shell-side leak.
| Option | Corrosion and inspection consequence | Replacement consequence |
|---|---|---|
| Seamless tubing | Avoids a longitudinal weld seam, but still requires checks for wall variation, inclusions and surface defects. | Straight lengths are easier to plug, remove and replace individually. |
| Welded-and-drawn tubing | Drawing improves dimensional control, but weld heat input, heat tint, inclusions and inadequate passivation can create a preferential pitting path. Require qualified weld procedures and inspect the seam with a method suited to the alloy. | Lower purchase cost is irrelevant if seam damage is difficult to locate or causes repeated leaks. |
| U-tube construction | Eliminates return-bend joints and permits thermal expansion, but the bend is harder to inspect, clean and replace; specify the minimum bend radius and bend-zone examination. | Replaceability is poor because one failed tube often requires plugging rather than extraction. |
| Tube pitch and baffle spacing | Tight tube pitch raises velocity and heat transfer but restricts tube-side cleaning and eddy-current probe access. Small baffle spacing increases support, yet raises pressure drop, vibration risk and deposit retention. | Select removable covers and access lanes when fouling or inspection drives downtime. |
| Tube sheet, partitions and supports | Incompatible tube sheets, pass-partition plates, tie rods or gasket crevices can become the first corrosion site. | A corrosion-resistant tube cannot rescue a carbon-steel wetted crevice. |
Specify delivered minimum wall, corrosion and erosion allowances, and a baseline eddy-current examination. Premier Engineering Works should show how its proposed bundle geometry permits cleaning, retesting and tube plugging without dismantling unrelated equipment.
Write procurement and life-management requirements into the specification
A purchase order should turn corrosion assumptions into acceptance criteria. Specify TEMA construction class and ASME BPVC Section VIII design basis, including pressure and temperature on each side, vacuum, cyclic duty, differential thermal expansion, test pressure and tube-plugging allowance.
- Name the tube alloy, manufacturing route, heat-treatment condition, minimum delivered wall and dimensional tolerances. Include corrosion, erosion and manufacturing allowances; do not use a large allowance to compensate for credible pitting or stress-corrosion cracking.
- For welded tube, define weld procedure qualification, heat input, weld quality, post-weld cleaning, passivation and limits on heat-tint oxides, sensitization and inclusions.
- Require heat numbers, traceable material certificates, positive material identification and applicable hydrostatic or pneumatic testing. State acceptance criteria and test records.
- If hydrogen sulfide is present, specify ISO 15156/NACE MR0175 requirements for alloy condition, hardness, weld qualification and environmental limits.
| Method | Suitable target | Procurement requirement |
|---|---|---|
| Eddy-current testing | Non-ferromagnetic stainless tubes | Qualify the probe and calibration for alloy, wall thickness, supports, deposits and expected damage |
| Remote-field or magnetic testing | Ferromagnetic tubes | Define coverage, calibration and limits for detecting the specified flaws |
| Visual and dimensional inspection | Tube ends, welds, surfaces and bundle geometry | Record findings before shipment and after cleaning |
Require a baseline examination before service, then set repeat inspections against operating hours or outage intervals. Specify cleaning chemistry, concentration, temperature, exposure time, inhibitor, rinsing and post-cleaning inspection; hydrochloric acid and chloride-bearing cleaners can rapidly damage stainless steel.
Frequently asked questions
What fluid information is needed before selecting a stainless steel tube bundle?
Record chloride concentration, pH, acids, caustic solutions, dissolved oxygen, sulfides, H2S, pressure, temperature cycles, velocity and deposit conditions.
How do you choose a stainless steel alloy for corrosive process fluids?
Match the alloy to the actual corrosion mechanism, operating temperature, fluid chemistry, stress level and fabrication condition rather than choosing by stainless grade alone.
What must be defined before sizing a tube bundle?
Set heat duty, inlet and outlet temperatures, flow rate, allowable pressure drop, velocity limits, fouling allowance and cleaning method.
What should a tube bundle procurement specification include?
State tube construction, bundle geometry, inspection and testing, material certificates, weld requirements, cleaning access, replaceability and life-management records.
